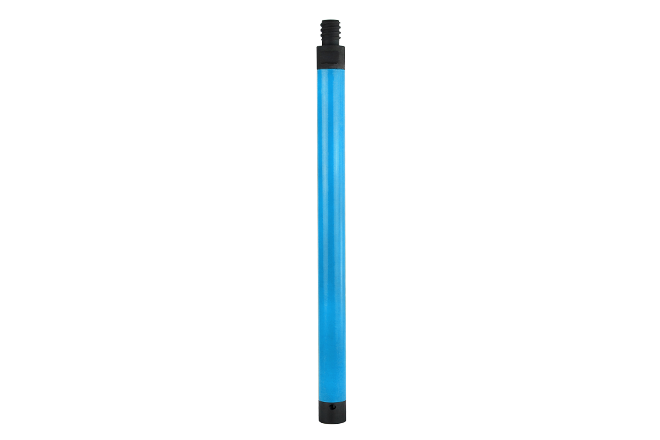

CIR 50A Low Pressure DTH Hammer

CIR 50A Low Pressure DTH Hammer

The down-the-hole hammer cooperates with the down-the-hole drilling rig and the dth drill bit, and is mainly used in the construction of mining, marble quarry blasting hole drilling, water well drilling engineering or drilling and other engineering construction.
1. King Kong DTH hammer is a valve-type central exhaust impactor, which has a good effect of discharging rock powder, reduces the repeated crushing of rock slag, reduces the wear of the drill bit, and improves the drilling efficiency;

2. The internal structure size of the impactor is designed with advanced rock drilling theory, so that the impactor can obtain ideal energy transfer, large single impact power, faster rock drilling speed and lower air consumption;

3. Using high-quality raw materials and advanced processing technology, the performance is more stable and the service life is longer.

4. Easy disassembly and assembly, low failure and convenient maintenance.

CIR50A	Item Description	Weight(Kg)	Technical Parameters
	Cap	0.08	Length(Lessbit)	628mm
	Valve	0.012	Weight (Lessbit)	5.5kg
	Valve Seat	0.22	External diameter	φ46mm
	Cylinder	0.52	Bit Shank	CIR50
	Piston	1.02	Hole Range	φ50-60
	Guide Sleeve	0.28	Connection Thread	F32X8PIN
	Rear Connector	0.62	WorkingPressure	0.5-1.0Mpa
	Outer Casing	2.23	Impactrateat0.63Mpa	16.6Hz
	Front Connector	0.36	Recommend edrotation speed	40-55r/min

Service

• The technical support team may provide remote or on-site support to resolve issues encountered by users during use.
• Provide original spare parts to ensure timely replacement of worn or damaged parts to maintain the normal operation of DTH bits.
• Timely information reply throughout the day, the first time to solve your problems.
