Description

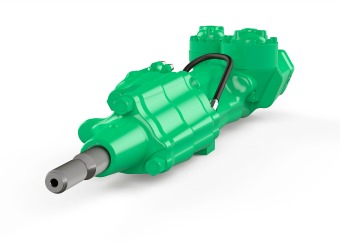

HC95 drifter Montabert

The latest generation of Hydraulic Drifter, designed for optimal drill life span, high input/output efficiency ratio, for reduced and optimized energy consumption, latest generation of patented proactive hydraulic dampener, improving shanks and bits life span, standard configuration with stainless steel front end, new drifter concept with less parts for handy maintenance.

Technical Specifications

Dimensions and Weight
Weight	407 kg (407 Ib)
Length without shank adapter	1033 mm
Length with shank adapter	1162 mm
Overall Width	301 mm
Height	86 mm
Rotation Specs
Max. Rotation Speed (RPM)	160cc (296 rpm)
Oil Flow (I / min)	160cc (75 I / min)
Max. Pressure (bar)	160cc (210 bar)
Max. Torque (Nm)	160cc (750 Nm)
Impact Ratings
Max. Output	21 kW (28.5 hp)
Input Range	30 – 40 kW (40 – 54 hp)
Percussion Flow Range	100 – 120 I / min
Percussion Pressure Range	170 – 200 bar (2465 – 2900 psi)
Max. Impact Frequency	62 Hz (3720 bpm)
Flushing Flow and Pressure
Water Flushing	60 – 120 I / min
Overhaul Kits
Seal Kit
600 Impact Hours Kit
1200 Impact Hours Kit
Shank Adapters
D45 R32 M	86777133
D45 R38 M	86757564
D45 T38 M	86748316
