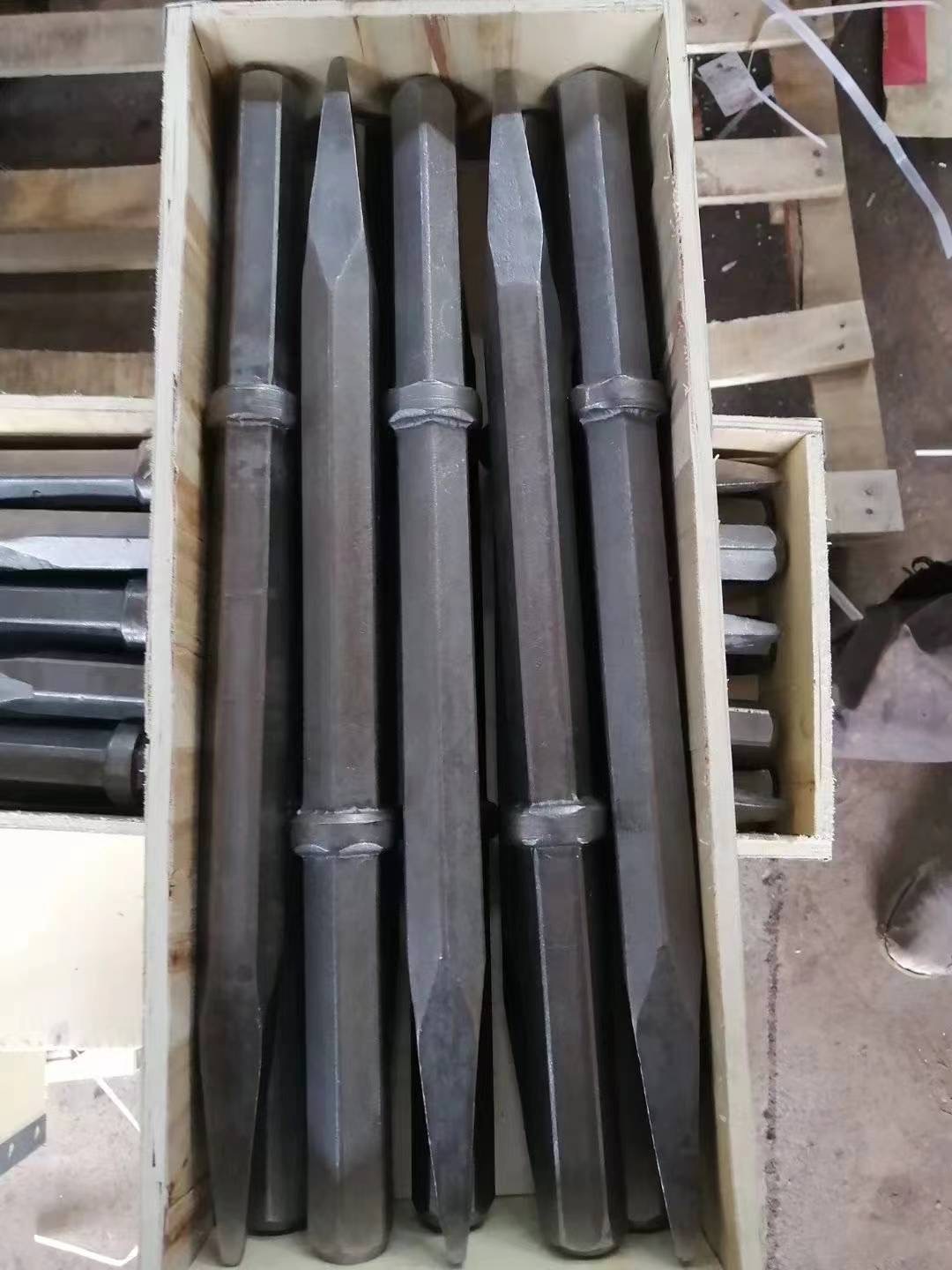

Integral Drill Rods

Integral Drill Rods

Integral drill rod is a kind of rock drilling tool that integrates drill bit, drill rod and shank adapter. It is mainly used for underground mining and small hole drilling, and is used with low-power rock drills, such as air-leg or hand-held rock drills. Integral drill rod can effectively reduce the loss of impact energy and improve the speed and efficiency of rock drilling

Category: Tags: , , ,

Description

Specification Of Integral Drill Rods

Shank H22×108mm

LengthBit DiameterWeight
Shank H22×108mm, Hex 22[mm][ft-in][mm][in][kg]Model No.
Series 118002′ 7″341 11/32″3.0H22-D34-800
Integral drill steel16005′ 3″331 19/64″5.4H22-D33-1600
24007′ 10″321 1/4″8.0H22-D32-2400
320010′ 6″311 7/32″10.3H22-D31-3200
400013′ 1″301 3/16″12.5H22-D30-4000
480015′ 9″291 9/64″15.0H22-D29-4800
Series 128002′ 7″401 37/64″3.1H22-D40-800
16005′ 3″391 17/32″5.5H22-D39-1600
24007′ 10″38  1 1/2″8.0H22-D38-2400
320010′ 6″37  1 29/64″10.3H22-D37-3200
400013′ 1″36  1 27/64″12.6H22-D36-4000
480015′ 9″35  1 3/8″15.0H22-D35-4800
Series 134001′ 4″341 11/32″1.8H22-D34-400
8002′ 7″331 19/64″3.0H22-D33-800
12003′ 11″32  1 1/4″4.3H22-D32-1200
16005′ 3″311 7/32″5.4H22-D31-1600
20006′ 7″301 3/16″6.6H22-D30-2000
Series 166002′35  1 3/8″2.5H22-D35-600
12003′ 11″341 11/32″4.2H22-D34-1200
18005′ 11″331 19/64″6.0H22-D33-1800
24007′ 10″32  1 1/4″8.1H22-D32-2400
Series 176002′411 5/8″2.4H22-D41-600
12003′ 11″401 37/64″4.2H22-D40-1200
18005′ 11″391 17/32″6.0H22-D39-1800
24007′ 10″38  1 1/2″8.0H22-D38-2400

Shank H25×108mm

LengthBit DiameterWeightModel No.
[mm][ft-in][mm][in][kg]
Integral drill steel

Shank H25×159mm, Hex 25

16005′ 3″411 5/8″7.5H25-D41-1600
24007′ 10″401 37/64″10.2H25-D40-2400
320010′ 6″391 17/32″13.7H25-D39-3200
400013′ 1″381 1/2″16.0H25-D38-4000

Shank H19×108mm, Plug Hole Rod

LengthBit DiameterWeight
[mm][ft-in][mm][in][kg]Model No.

Shank H19×108mm

1606 1/4″2025/32″0.6H19-D20-160
2007 7/8″227/8″0.7H19-D22-200
28011 1/32″227/8″0.9H19-D22-280
31011 1/4″227/8″1.0H19-D22-310
