Description
Introduction
JC860 hydraulic down-hole drill rig is a type of drilling equipment used in various industries, particularly in mining, oil and gas exploration, and geothermal energy extraction. This type of drill rig is designed to penetrate the Earth’s subsurface by using hydraulic power to drive the drilling process.

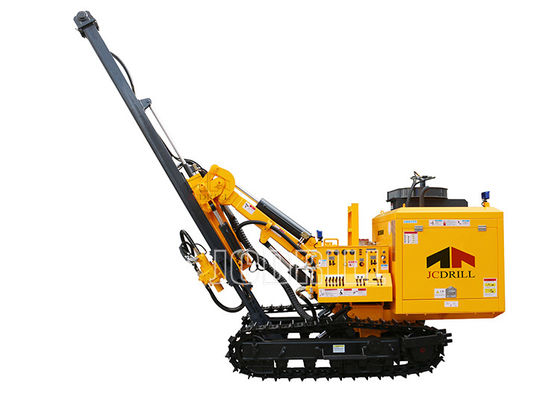

40m Blasting Drilling Machine Big Rotation Torque Two Motor Rotary Head
| Drilling Depth: | 40m | Drilling Diameter: | 90-152mm |
|---|---|---|---|
| Max Swing Of Boom: | 45° Left / 45° Right | Shipping Dimension(L*W*H): | 6000*2000*2480mm |
| Drilling Rod Diameter: | 60,76,89mm | Net Weight: | 5500kgs |
| Ground Clearance: | 252mm | Compressor Type: | Rotary Screw/Movable |
| Engine Type: | 4Cylinder,water Cooling | Max. Travel Speed(Slow/Fast): | 2/3Km/h |
| High Light: | rock blasting drilling machine , big rotation torque blasting drilling machine , rock drilling machine for blasting | ||
big rotation torque two motor rotary head rock blasting drilling rig for 40m drilling.
JC860 hydraulic down-hole drill rig
JC860 hydraulic down-hole drill rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate.
JC860 hydraulic down-hole drill rig is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight.
JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.
The Rugged track was driven by hydraulic motor with high traveling ability.The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
Specification
Hydraulic down-hole drill rigs often use a mud circulation system to cool the drill bit, carry cuttings to the surface, and provide stability to the borehole walls. The drilling mud is pumped down through the drill string and returns to the surface through the annular space between the drill string and the borehole.The hydraulic down-hole drill rig is equipped with a power unit that houses the hydraulic pump, reservoir, and other components necessary to generate and control hydraulic power.
These drill rigs are highly specialized and can vary in size and configuration depending on the specific application and geological conditions. They play a crucial role in various industries by enabling the extraction of valuable resources from beneath the Earth’s surface.
| Specification | Unit | JC860 |
| Drilling Specification | ||
| Rock Hardness | F=6-20 | |
| Hole Diameter | mm | 90-152 |
| Hole Depth | m | 40 |
| Drilling Rod Diameter | mm | 60,76,89 |
| Rotary Head | ||
| Rotation Torque | Nm | 2650 |
| Rotation Speed(Normal and Fast) | rpm | 0-82/0-112 |
| Feeding System | ||
| Max. Feed force | KN | 25 |
| Max. Lifting force | KN | 30 |
| Max. Feed Speed | M/min | 15 |
| Max. Lifting Speed | M/min | 15 |
| Boom&Guide | ||
| Max Swing of Boom | ° | 45° left / 45° right |
| Max Dump of Boom | ° | up60 down20 |
| Max Swing of Mast | ° | 30(L) / 91(R) or91(L) / 30(R) |
| Max Dump of Mast | ° | 180 |
| Feed Stroke | m | 3.2 |
| Engine | ||
| Manufacturer | YUCHAI | |
| Rated Horse power | Kw | 63 |
| Type | 4Cylinder,water cooling | |
| Air Compressor demand | ||
| Air Consumption | M³/min | 11.3-21m2/min(1.4-2.4 Mpa) |
| Compressor Type | Rotary Screw/Movable | |
| Dust Collector | ||
| Dry/Wet | Optional | |
| General Specification | ||
| Max. Travel Speed(Slow/Fast) | Km/h | 2/3 |
| Gradeability | ° | 24 |
| Net Weight | kgs | 5500 |
| Shipping Dimension(L*W*H) | mm | 6000*2000*2480 |
| Ground Clearance | mm | 252 |
Service
JC860 hydraulic down-hole drill rig after-sales service should include technical support:
- Provide a professional technical support team, at any time for customers to answer equipment operation, maintenance and troubleshooting problems.
- Supply of spare parts and spare parts to ensure customers have access to high-quality replacement parts in a timely manner. This helps reduce downtime in the event of equipment failure and keeps the equipment operating at its best。
- Providing customized service and support according to the specific needs of the customer, ensuring that the equipment can meet the needs of the customer to the maximum.
