Description

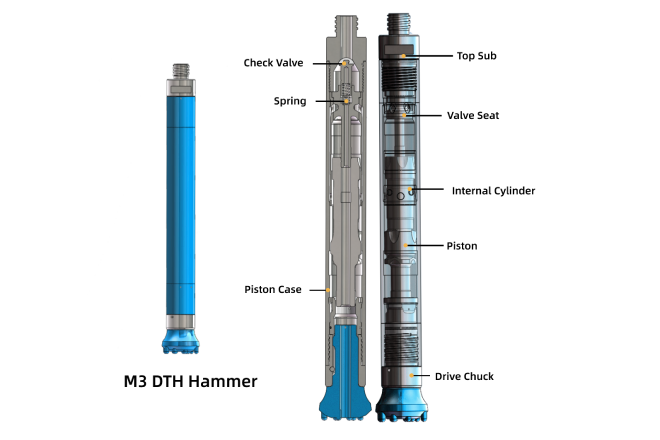

Medium Pressure M3 DTH Hammer
Medium Pressure M3 DTH Hammer
King Kong medium pressure DTH hammer can be used for drilling in mining, quarrying, exploration, water-well, geothermal, and construction/geotechnical projects. Our DTH hammer are interchangeable with most of the world’s best-known brands(such as Atlas copco,Boart longyear …). We can produce not only commonly used DTH hammer models, but also Russian DTH hammer according to customer preferences.
| Model | MW-M3 | MW-M3K | MW-M4 |
| Length(Lessbit) | 790 mm | 767 mm | 851 mm |
| Weight (Lessbit) | 21.64 kg | 20.42 kg | 35.45 kg |
| External diameter | 84 mm | 82 mm | 99 mm |
| Bit Shank | CIR90 | CIR90 | CIR110 |
| Hole Range | φ90-130（mm） | φ90-130（mm） | φ110-150（mm） |
| Connection Thread | F48X10PIN | F48X10PIN | API2 3/8″ REG BOX |
| WorkingPressure | 0.8-1.3MPa | 0.8-1.3MPa | 0.8-1.3MPa |
Service
- The technical support team may provide remote or on-site support to resolve issues encountered by users during use.
- Provide original spare parts to ensure timely replacement of worn or damaged parts to maintain the normal operation of DTH bits.
- Timely information reply throughout the day, the first time to solve your problems.
