Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]

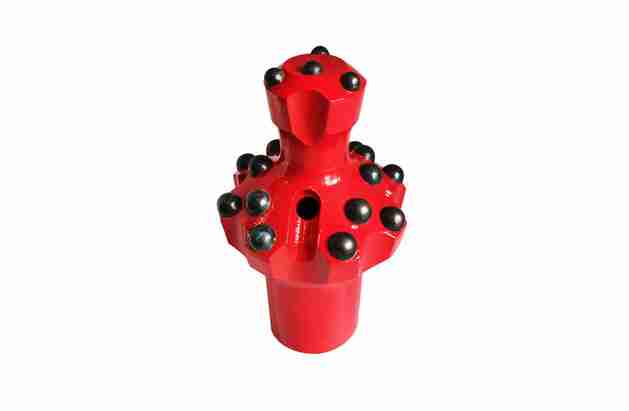

Dome Reaming Bit	76	3″	9 × 13	1 × 12	–	2	2	R32-7610KKP
	89	3 1/2″	8 × 12.7	7 × 12.7	2	4	3	R32-8915KKP
	102	4″	8 × 13	7 × 13	–	5	3.7	R32-10215KKP
	102	4″	8 × 13	9 × 13	2	4	3.8	R32-10217KKP
	102	4″	14 × 12	3 × 10	–	2	3.6	R32-10217KKP1
Pilot Reaming Bit	76	3″	12 × 12	4 × 10	–	2	2.5	R32-7616DXP
	89	3 1/2″	12 × 12	4 × 10	–	2	3.4	R32-8916DXP
	102	4″	12 × 13	3 × 10	–	4	3.4	R32-10215DXP
	102	4″	14 × 12	3 × 10	–	2	3.8	R32-10217DXP
	102	4″	8 × 14	7 × 12	–		4.8	R32-10215DXP1

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”SR35 thread”][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	89	3 1/2″	8 × 13	7 × 13	1	2	3	SR35-8915KKP
	102	4″	8 × 13	7 × 13	2	2	3.7	SR35-10215KKP

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”T38 thread “][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9”]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	102	4″	8 × 13	9 × 13	2	2	3.8	T38-10217KKP
	125	4 59/64″	9 × 13	10 × 13	2	2	7.5	T38-12519KKP
	127	5″	9 × 13	10 × 13	2	2	8	T38-12719KKP
	152	6″	9 × 16	11 × 16	2	2	12.3	T38-15220KKP
Pilot Reaming Bit	89	3 1/2″	12 × 12	4 × 10	–	2	3.4	T38-8916DXP
	102	4″	8 × 14	7 × 11	–		4.3	T38-10215DXP
	115	4 1/2″	8 × 14	7 × 12	–		5.8	T38-11515DXP
	127	5″	8 × 14	7 × 12	–		7.7	T38-12715DXP
	127	5″	8 × 14	7 × 12	–		6.5	T38-12715DXP1
	127	5″	10 × 14	7 × 12	–		6.6	T38-12717DXP
	152	6″	8 × 16	7 × 14	–		13.3	T38-15215DXP
	178	7″	16 × 16	3 × 14	–		19.7	T38-17819DXP

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”T45 thread”][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	152	6″	9 × 16	11 × 16	2	2	12.3	T45-15220KKP
Pilot Reaming Bit	102	4″	12 × 13	3 × 10			4.2	T45-10215DXP
	102	4″	8 × 12	9 × 10	–		4.2	T45-10217DXP
	152	6″	8 × 16	10 × 14	–		12.8	T45-15218DXP
	152	6″	8 × 14	7 × 14	–		12.8	T45-15215DXP

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”T51 thread”][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	152	6″	9 × 16	11 × 16	2	2	12.3	T51-15220KKP
Pilot Reaming Bit	127	5″	12 × 14	7 × 12	–		5.9	T51-12719DXP

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”ST58″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	152	6″	9 × 16	11 × 16	2	2	12.3	ST58-15220KKP
Pilot Reaming Bit	189	7 7/16″	15 × 16	3 × 14	–		20.2	ST58-18918DXP

[/bt_text][/bt_accordion_items][/bt_accordion][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_accordion][bt_accordion_items headline=”ST68 thread”][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Appearance	Diameter		Buttons		Flushing Hole		Weight	Model No.
	[mm]	[in]	Gauge [No.] × [mm]	Front [No.] × [mm]	Side [No.]	Front [No.]	[kg]
Dome Reaming Bit	152	6″	9 × 16	11 × 16	2	2	12.3	ST68-15220KKP
Pilot Reaming Bit	152	6″	9 × 16	3 × 16	–		14.2	ST68-15212DXP
	254	10″	8 × 16	7 × 14	–		51.4	ST68-25415DXP
