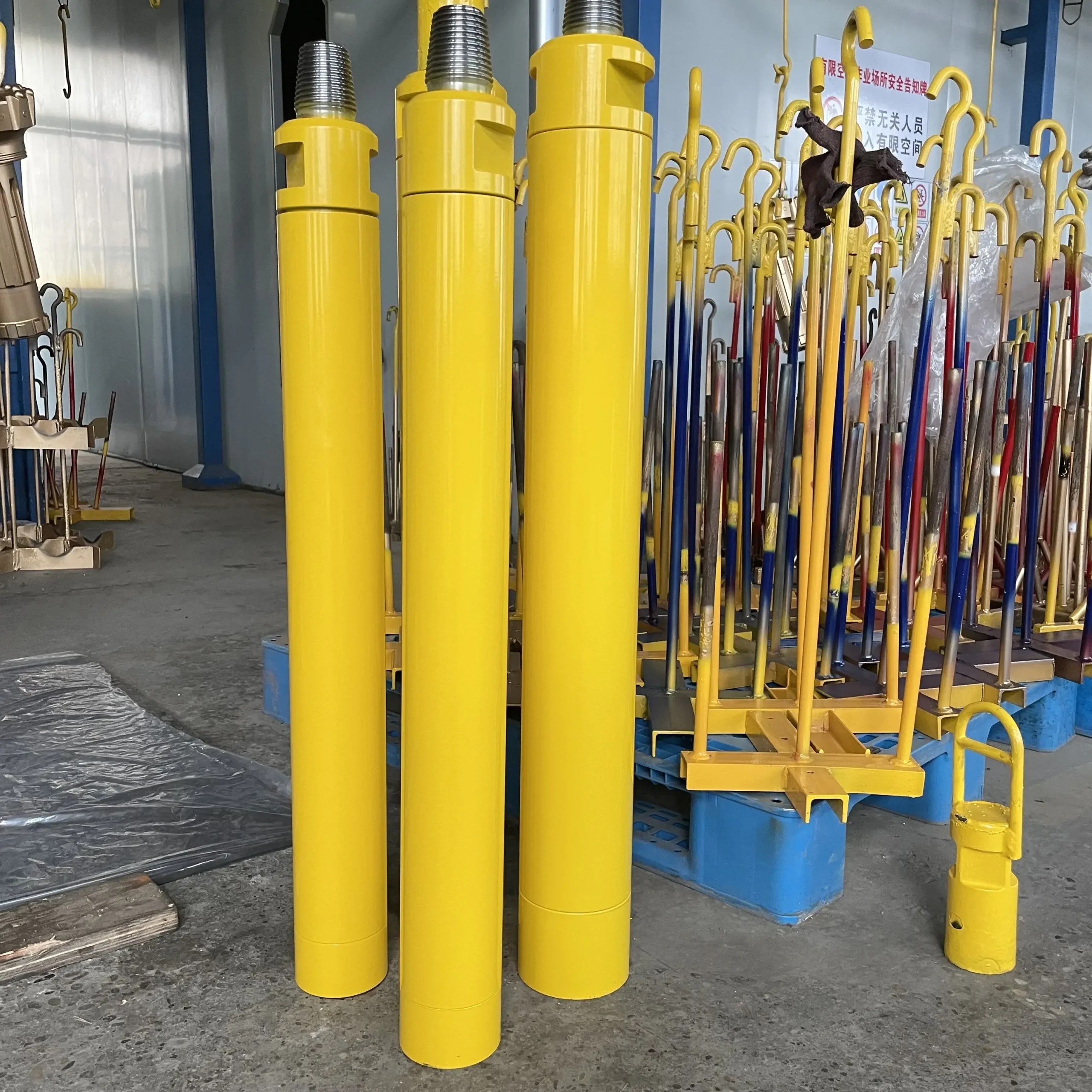

SD10 DTH hammer
SD10 DTH hammer
KING KONG brand DTH Hammers are faster, more service friendly and longer lasting, compared with most drilling products in the market.
The optimal performance of LEANOMS DTH Hammers includes:
1. High productivity.
2. Longer service life.
3. Low energy consumption.
Effiency increase by 20%-30%, which means the higher drilling output will deliver maximum profit for you.
KING KONG brand DTH Hammer Types coverage: DHD/COP/HD/IR/TD/COPROD/QL/SD/Mission/Numa/Mach etc. Size range: 2”-24”
Applications
Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc
| Length (without bit) | Weight (Without bit) | External diameter | Bit shank | Hole range | Connection thread |
| 1413mm | 303kg | Φ225mm | SD10 | Φ254-Φ305mm | API 4-1/2″ REG API 5-1/2″ REG |
| Working pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption | ||
| 18Mpa | 21Mpa | 24Mpa | |||
| 10-25Mpa | 20Hz | 13-35r/min | 40m³/min | 48m³/min | 55m³/min |
| Length (without bit) | Weight(Without bit) | External diameter | Bit shank | Hole range | Connection thread |
| 1441mm | 308kg | Φ225mm | NUMA100 | Φ254-Φ305mm | API 4-1/2″ REG API 5-1/2″ REG |
| Working pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption | ||
| 14Mpa | 17.2Mpa | 20.7Mpa | |||
| 10-25Mpa | 20Hz | 13-35r/min | 24.75m³/min | 36.27m³/min | 43.65m³/min |
Service
- The technical support team may provide remote or on-site support to resolve issues encountered by users during use.
- Provide original spare parts to ensure timely replacement of worn or damaged parts to maintain the normal operation of DTH bits.
- Timely information reply throughout the day, the first time to solve your problems.
