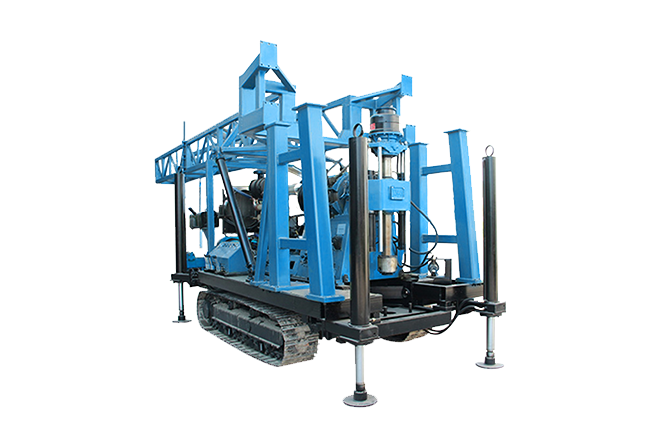

Key features of the XY-44A core drill rig

with more speed series (12 level positive turn 2 level reverse) and reasonable speed range, low speed torque (up to 8000N.m), not only suitable for alloy, diamond core drilling, but also suitable for engineering geological investigation, hydrologic well drilling and foundation pile engineering construction.
vertical shaft through hole diameter (93mm), double cylinder hydraulic feed, long stroke (up to 600mm), strong process adaptability, especially suitable for large diameter drill pipe rope coring (upper coring) drilling, conducive to improving drilling efficiency.

the power of FAW Tin Chai 4110 (81 kW) naturally aspirated engine, Guangxi Yuchai 4110 (105 kW) turbocharged engine is optional.

Low center of gravity of drilling machine, long shifting distance (460mm), fixed firmly, high speed drilling stability.

the crawler chassis, leg cylinder travel 1.5m can be automatically loaded, easy to move and transport.
