Description

[bt_section lazy_load=”no” show_video_on_mobile=””][bt_row][bt_column width=”1/4″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

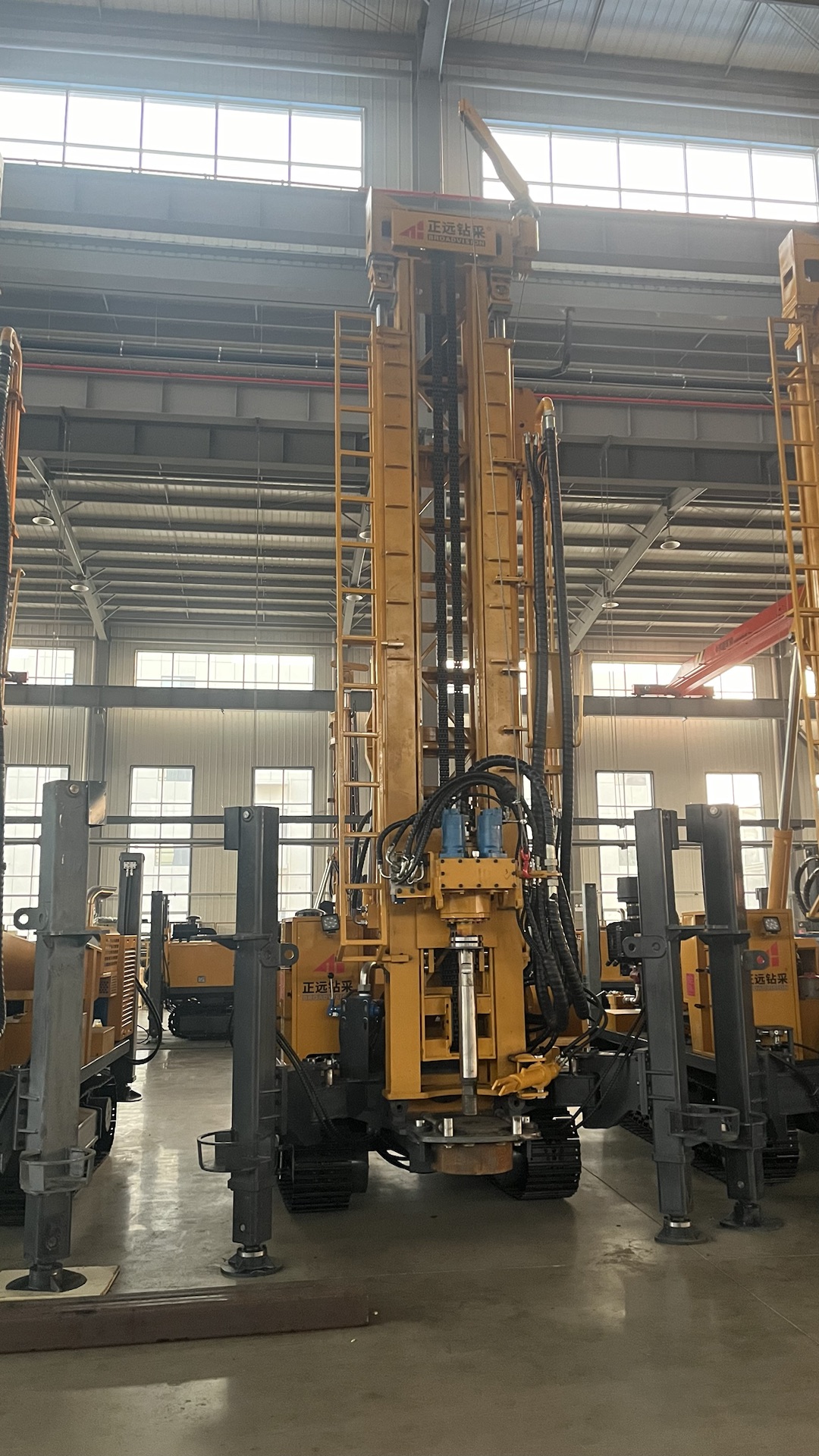

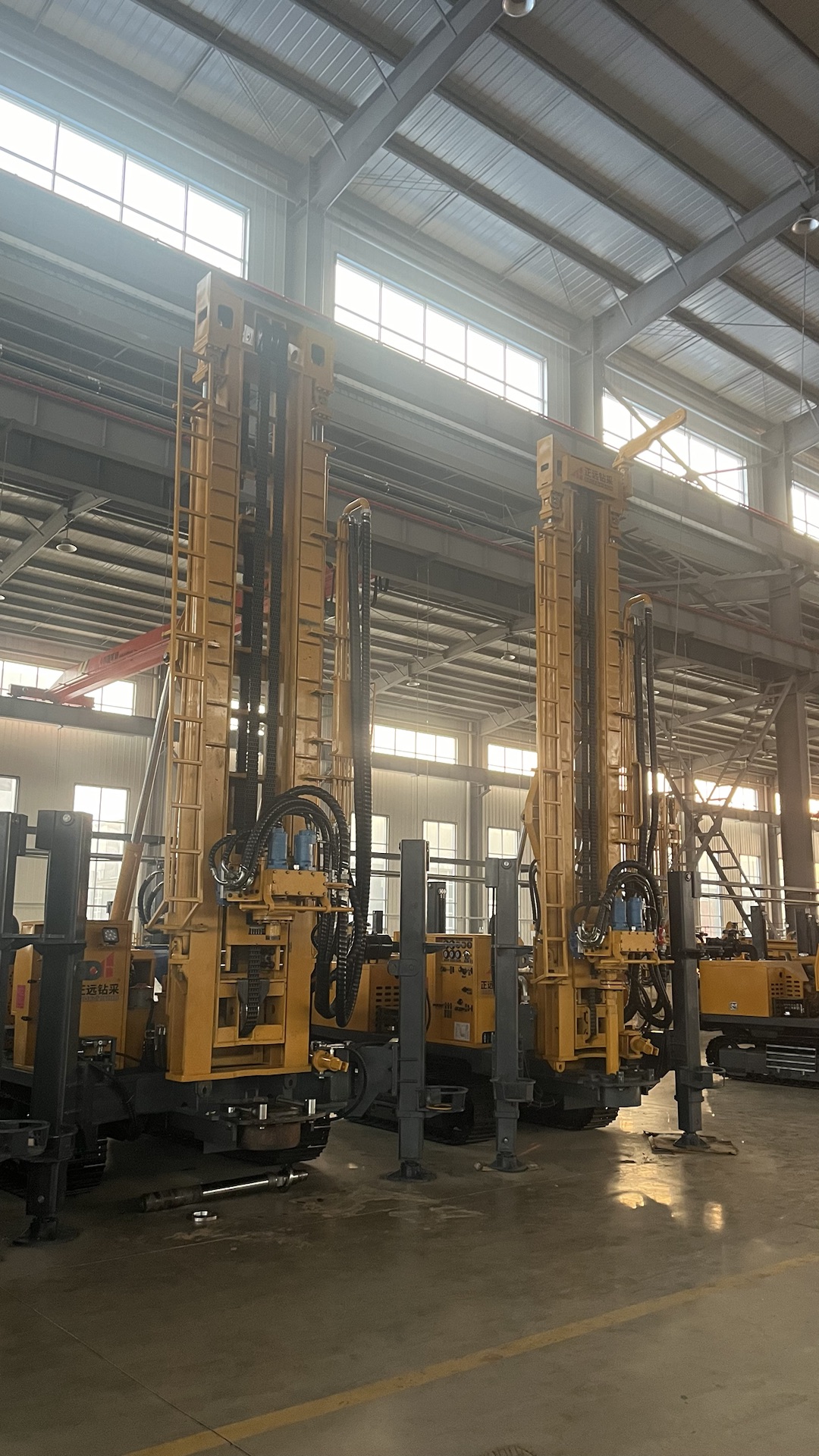

SL500S tracked water well drilling rig

Max drilling depth 500m
Drilling diameter 105-400mm
Air pressure 1.2-3.5Mpa
Air consumption 16-55 m³/min
Drill pipe length 6 m

Drill pipe diameter 102mm

Axial pressure 6T

Lifting force 30 T

Fast lifting speed 29m/min

Fast feeding speed 48m/min

Max rotary torque 10000/5000 Nm

Max rotary speed 75/150 r/min

Big auxiliary winch lifting force –

Small auxiliary winch lifting force 1.5 T

Jacks stroke 1.6m

Drilling efficiency 10-35 m/h

Driving speed 3 Km/h

Uphill angle 21°

Weight of drilling rig 10.5 T
Dimension 6.2*1.85*2.55
Working condition

Unconsolidated formation and bedrock

Drilling methods

Top drive hydraulic rotary and feeding, DTH hammer or mud drilling

[/bt_text][/bt_column][bt_column width=”1/4″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

SL600S tracked water well drilling rig

Max drilling depth 600m
Drilling diameter 105-500mm
Air pressure 1.2-3.5Mpa
Air consumption 16-55 m³/min
Drill pipe length 6 m

Drill pipe diameter 102mm

Axial pressure 6T

Lifting force 35T

Fast lifting speed 33m/min

Fast feeding speed 55m/min

Max rotary torque 12000/6000 Nm

Max rotary speed 90/180 r/min

Big auxiliary winch lifting force –

Small auxiliary winch lifting force 2.5 T

Jacks stroke 1.6m

Drilling efficiency 10-35 m/h

Driving speed 3Km/h

Uphill angle 21°

Weight of drilling rig 12.5T
Dimension 6.5*2.1*2.65
Working condition

Unconsolidated formation and bedrock

Drilling methods

Top drive hydraulic rotary and feeding, DTH hammer or mud drilling

[/bt_text][/bt_column][bt_column width=”1/4″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

SL750S tracked water well drilling rig

Max drilling depth 750m
Drilling diameter 105-450mm
Air pressure 1.6-6Mpa
Air consumption 16-75 m³/min
Drill pipe length 6 m

Drill pipe diameter 102mm

Axial pressure 6T

Lifting force 40 T

Fast lifting speed 31m/min

Fast feeding speed 65m/min

Max rotary torque 12600/6300 或 15000/7500 Nm

Max rotary speed 95/190 r/min

Big auxiliary winch lifting force –

Small auxiliary winch lifting force 2.5 T

Jacks stroke 1.6m

Drilling efficiency 10-35 m/h

Driving speed 3 Km/h

Uphill angle 21°

Weight of drilling rig 14T
Dimension 6.3*2.25*2.65
Working condition

Unconsolidated formation and bedrock

Drilling methods

Top drive hydraulic rotary and feeding, DTH hammer or mud drilling

[/bt_text][/bt_column][bt_column width=”1/4″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

SL1000S tracked water well drilling rig

Max drilling depth 1000m
Drilling diameter 105-800mm
Air pressure 1.6-8Mpa
Air consumption 16-96 m³/min
Drill pipe length 6 m

Drill pipe diameter 114mm

Axial pressure 8T

Lifting force 52T

Fast lifting speed 30m/min

Fast feeding speed 61m/min

Max rotary torque 20000/10000 Nm

Max rotary speed 70/140 r/min

Big auxiliary winch lifting force –

Small auxiliary winch lifting force 2.5T

Jacks stroke 1.7m

Drilling efficiency 10-35 m/h

Driving speed 5Km/h

Uphill angle 21°

Weight of drilling rig 17.5T
Dimension 7*2.25*2.65
Working condition

Unconsolidated formation and bedrock

Drilling methods

Top drive hydraulic rotary and feeding, DTH hammer or mud drilling

[/bt_text][/bt_column][/bt_row][bt_row][bt_column width=”1/1″][bt_image lazy_load=”no” image=”24368″ caption_text=”” caption_title=”” show_titles=”no” size=”full” shape=”square” hover_type=”btDefaultHoverType” url=”” target=”_self” el_class=”” el_style=””][/bt_image][/bt_column][/bt_row][/bt_section][bt_section lazy_load=”no” show_video_on_mobile=””][bt_row][bt_column width=”1/1″][bt_text ai_prompt_helper=”eyJrZXl3b3JkcyI6IiIsInRvbmUiOiIiLCJsYW5ndWFnZSI6IiIsImxlbmd0aCI6IiJ9″]

Service

The technical support team may provide remote or on-site support to resolve issues encountered by users during use.
Provide original spare parts to ensure timely replacement of worn or damaged parts to maintain the normal operation of drilling rigs.
Timely information reply throughout the day, the first time to solve your problems.
